UV Dezenfeksiyon Sistemleri

Kimyasal yöntemlere çevreci bir alternatif olan UV dezenfeksiyon sistemlerimiz, bakteriler, virüsler ve mantarlar gibi mikroorganizmaları etkili şekilde yok eder. Gıda sınıfı polipropilen malzemeden üretilen kapalı UV tüplerimiz, 1000 m³/h kapasiteye kadar performans sunar ve standart sıcaklık sensörleri ile donatılmıştır. İhtiyaca göre UV yoğunluk sensörü ve PLC kontrol cihazlarıyla desteklenebilir.

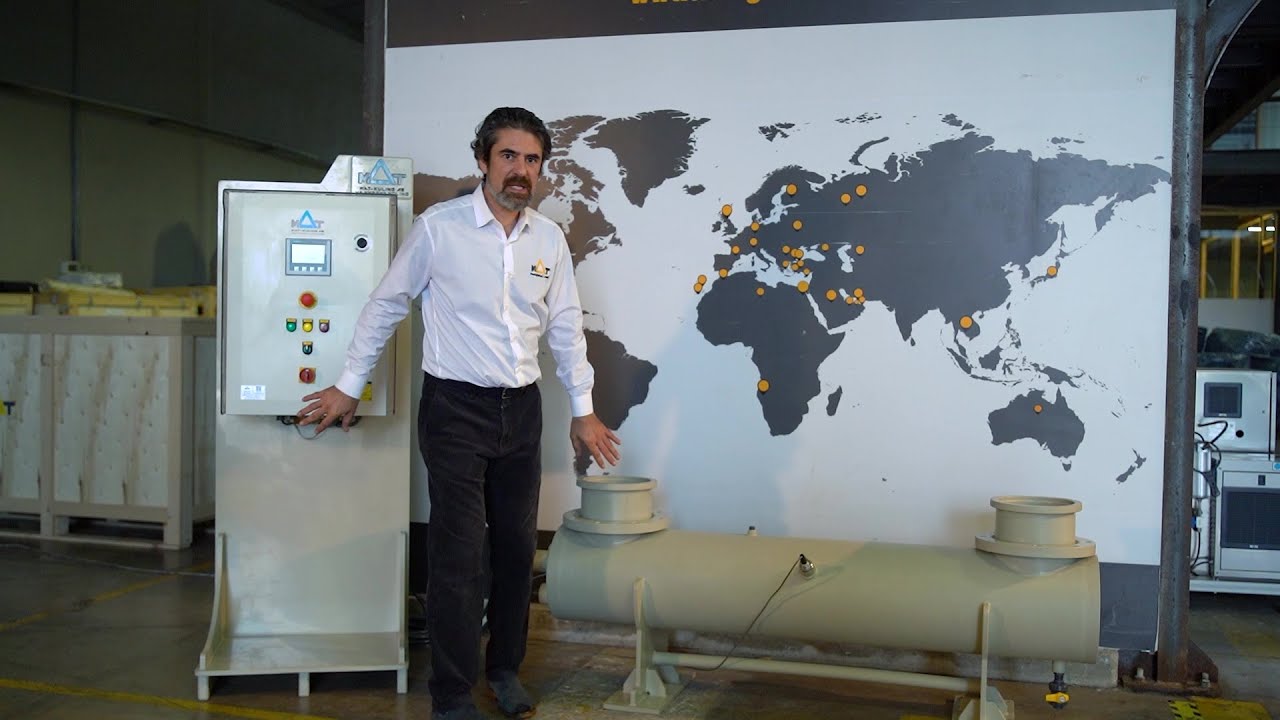

Corrosion Free (PP) Advanced UV Disinfection & Sterilization Systems

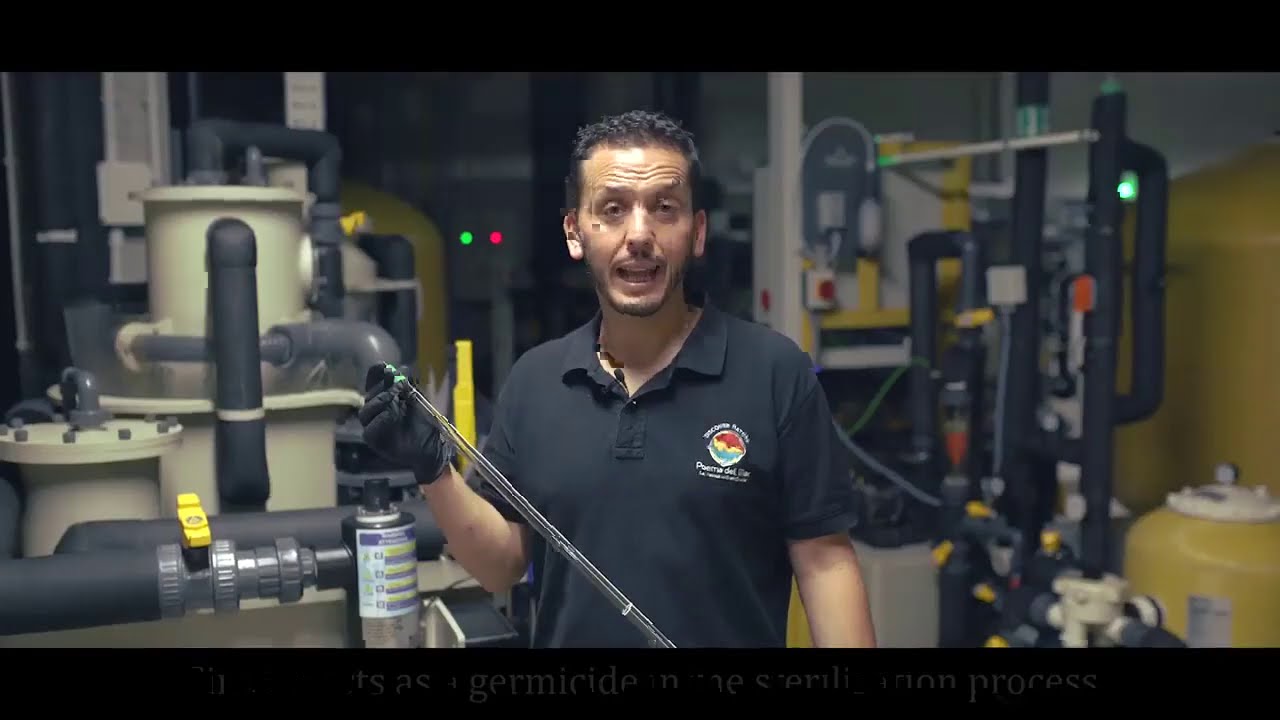

Aquarium UV Sterilization Systems Presentation by Poema del Mar

UVC Standard Models

UV Model	UVC-1	UVC-5	UVC-10	UVC-20	UVC-50	UVC-100	UVC-150	UVC-250	UVC-350	UVC-500	UVC-700	UVC-1000	UVC-2000	UVC-3000	UVC-6000
Product Description	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PP BODY	UV DIS-INFECTION UNIT-PE BODY	UV DIS-INFECTION UNIT-PE BODY	UV DIS-INFECTION UNIT-PE BODY
Nominal Flow Rate [m³/h]	1	5	10	20	50	100	150	250	350	500	700	1000	2000	3000	6000
Max Flow Rate [m³/h]	2	8	12	30	55	115	165	300	370	500	700	1000	2000	3000	6000
UV Dose-Nominal Flow [mJ/cm2 ]	40	46.3	42.3	43.9	44.4	43.5	43	43	42.8	45.6	45.6	31.4	TBD	TBD	TBD
Lamp UV 254 nm efficiency [%]	30	30	30	30	38	38	38	38	38	38	38	38	38	38	38
Design Water UVT Ratio [%]	98	98	98	98	98	98	98	98	98	98	98	98	98	98	98
Quartz Sleeve Transmittence Value [%]	93	93	93	93	93	93	93	93	93	93	93	93	93	93	93
Inlet / Outlet Connection Type	Pipe Fitting Connection	Pipe Fitting Connection	Pipe Fitting Connection	Pipe Fitting Connection	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)	Flange Adaptor with Gasket (RF)
Connection Orientation Standard	U	U	U	U	U	U	U	U	U	U	U	U	-	-	-
Connection Orientation Options	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L/Z	L	L	L
Flange/ Pipe Connection Sizes	1 " BSP	1 1/2" BSP	3" BSP	3" BSP	DN100	DN150	DN200	DN200	DN300	DN400	DN400	DN400	DN600	DN700	DN800
Piping Norm Adopte	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10	ISO1452-2 PN10
Flange Pattern Norm	N/A	N/A	N/A	N/A	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10	ISO1452-3 PN10
Drain Connection Type	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded	Threaded
Drain Size [in]	½	½	½	½	½	½	½”	½	½	½	½	½	½”	½”	½”
UV Reactor Body Material	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP	PE	PE	PE
UV Reactor Diameter (Ø) [mm]	63	75	160	160	140	200	280	315	355	500	500	500	710	800	1200
UV Reactor Length [mm]	650	745	820	765	1785	1785	1785	1785	1785	1795	1785	1785	2685	2710	2975
UV Reactor Width [mm]	135	160	220	190	255	300	345	345	500	600	600	600	860	975	1405
UV Reactor Height [mm]	300	300	455	350	425	510	550	610	1015	780	795	785	1200	1290	1690
Operation Temperature Range [ºC]	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0	2.0 - 45.0
Max Operating Pressure [bar]	2	5	5	5	5	5	5	2	2	2	2	2	2	2	2
Test Pressure [bar]	3	7.5	7.5	7.5	7.5	7.5	7.5	3	3	3	3	3	3	3	3
UV Reactor Temperature Alarm	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard	Standard
Number of UV Lamps [pcs]	1	1	2	3	1	2	3	4	5	8	10	12	20	30	60
Lamp Category	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp	Low Pressure Amalgam Lamp
Lamp Lifespan [h]	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000
Power Per Lamp [W]	48	87	87	87	400	400	400	400	400	400	400	400	400	400	400
UV Lamp Standard Cable Lenght [m]	6	6	6	6	6	6	6	6	6	6	6	6	6	6	6
Electrical Panel Protection Class	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54	IP54
UV Body Operational Weight [kg]	4	7	10	12	35	65	95	155	181	434	434	438	750	980	1690
UV Body Dry Weight (UV Chamber) [kg]	2	2	3	5	8	15	25	45	40	120	120	122	200	260	375
Control Bord Widht [mm]	400	400	500	500	500	600	800	800	800	800	1000	1000	TBD	TBD	TBD
Control Bord Depth [mm]	210	210	210	210	210	210	400	400	400	400	400	400	TBD	TBD	TBD
Control Bord Length [mm]	300	300	400	400	400	400	450	450	450	450	600	600	TBD	TBD	TBD
Control Bord Dry Weight [kg]	4	6	6,8	7,5	6,8	13,2	35	65	65	75	85	90	TBD	TBD	TBD
Total Current [A]	0.3A	0.5A	1A	1.5A	2.5A	5A	7,5A	8.5A	3,7A	5.8A	7,5A	9A	TBD	TBD	TBD
Total Installed Power [kW]	0.04	0.1	0.2	0.3	0.4	0.8	1.2	1.6	2.4	3.2	4 .0	4.8	TBD	TBD	TBD
Supply Voltage 50/60Hz* [V]	1~230V AC	1~230V AC	1~230V AC	1~230V AC	1~230V AC	1~230V AC	1~230V AC	1~230V AC	3~400V AC	3~400V AC	3~400V AC	3~400V AC	3~400V AC	3~400V AC	3~400V AC

UVC Optional Components

UV Model Optional Features	UVC-1	UVC-5	UVC-10	UVC-20	UVC-50	UVC-100	UVC-150	UVC-250	UVC-350	UVC-500	UVC-700	UVC-1000	UVC-2000	UVC-3000	UVC-6000
PLC Control Board	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Digital Flow Meter	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Control Board Width (with PLC) [mm]	600	600	600	700	600	700	800	800	800	800	1000	1000	TBD	TBD	TBD
Control Board Depth (with PLC) [mm]	210	210	210	300	210	300	400	400	400	400	400	400	TBD	TBD	TBD
Control Board Length (with PLC) [mm]	400	400	400	500	400	500	450	450	450	450	600	600	TBD	TBD	TBD
Control Board Dry Weigth (with PLC) [kg]	4.3	6.3	7.1	7.8	7.1	13.5	35	65	65	75	85	90	TBD	TBD	TBD
UV Irradiance Sensor	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional

*MAT FİLTRASYON TEKNOLOJİLERİ™ listelenen fiyatları (varsa) her zaman güncelleme hakkını saklı tutar. Yukarıda belirtilen teknik özellikler kapsamında , bölgesel gereksinimlerinize göre değişiklik gösterebilecek elektrik özellikleri, teknik veriler ve güncel fabrika çıkış fiyat listesi için lütfen Satış Departmanımız ile iletişime geçin. Listelenen fiyatlar temel ekipmanlar içindir ve isteğe bağlı bileşenleri içermemektedir.
